A Pioneered, unique revolution in Indian technology where aluminium is
expanded into a variety of products including industrial flooring known
as DECOFLOOR which has equal footing with recognized strength of steel.
Notes:

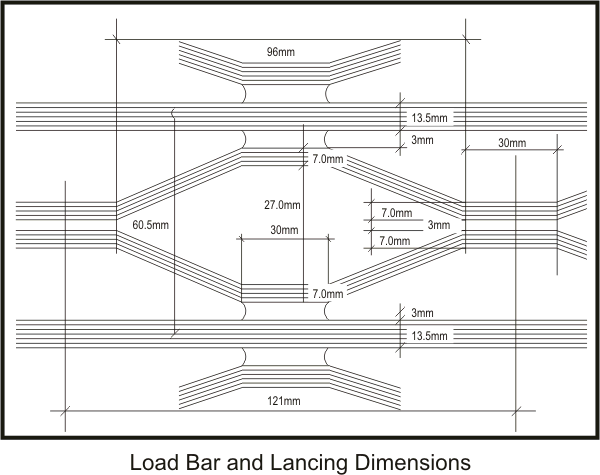

Load Bar and Lancing Dimensions

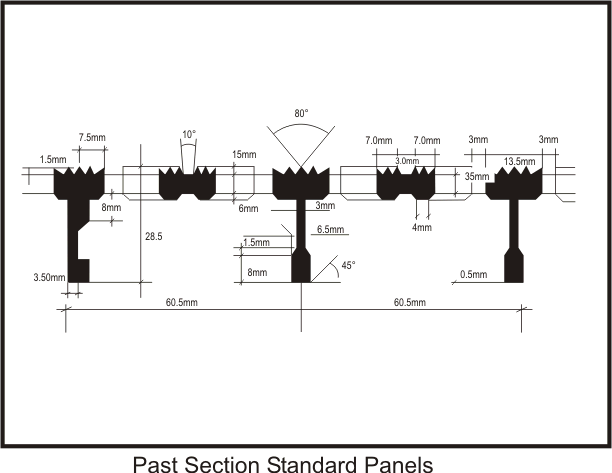

Past Section Standard Panels

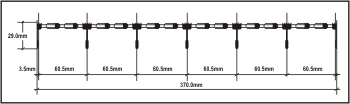

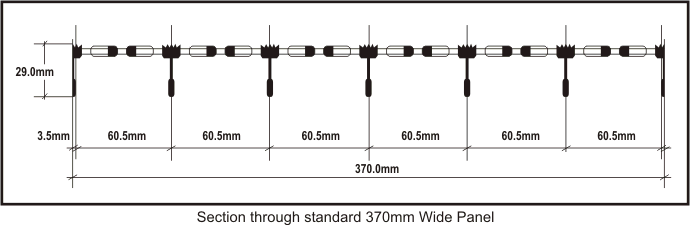

Section through standard 370mm Wide Panel
Typical Application:
COMMERCIAL:
CLICK TO VIEW TECHNICAL SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | ||
| 1. Material – AA 6063 – T6 (IS – 63400) | ||
| 2. Ultimate Tensile Strength – 19 kg / sq. mm | ||
| 3. Elongation of 50 mm GL – 14% Min. | ||
| 4. Yield strength (0.2% proof stress) – 8 kg / sq.mm | ||
| 5. Brinell Hardness – (Typical) – 50 | ||
| 6. Modulus of Elasticity – (Generally) 7 x 10³ kg / sq.mm | ||
| 7. Chemical composition: | ||
| Cu | - 0.1% max | |
| Mg | - 0.4% min | |
| - 0.9% max | ||
| Si | - 0.3% min | |
| - 0.7% max | ||
| Fe | - 0.6% max | |
| Mn | - 0.3% max | |
| Cr | - 0.1% max | |
| Others | - 0.4% max | |
| 8. Weight of Decofloor - 13 kg /sq mt | ||
| 9. Anodizing – It can be hard anodized or silver anodized. | ||
